Description

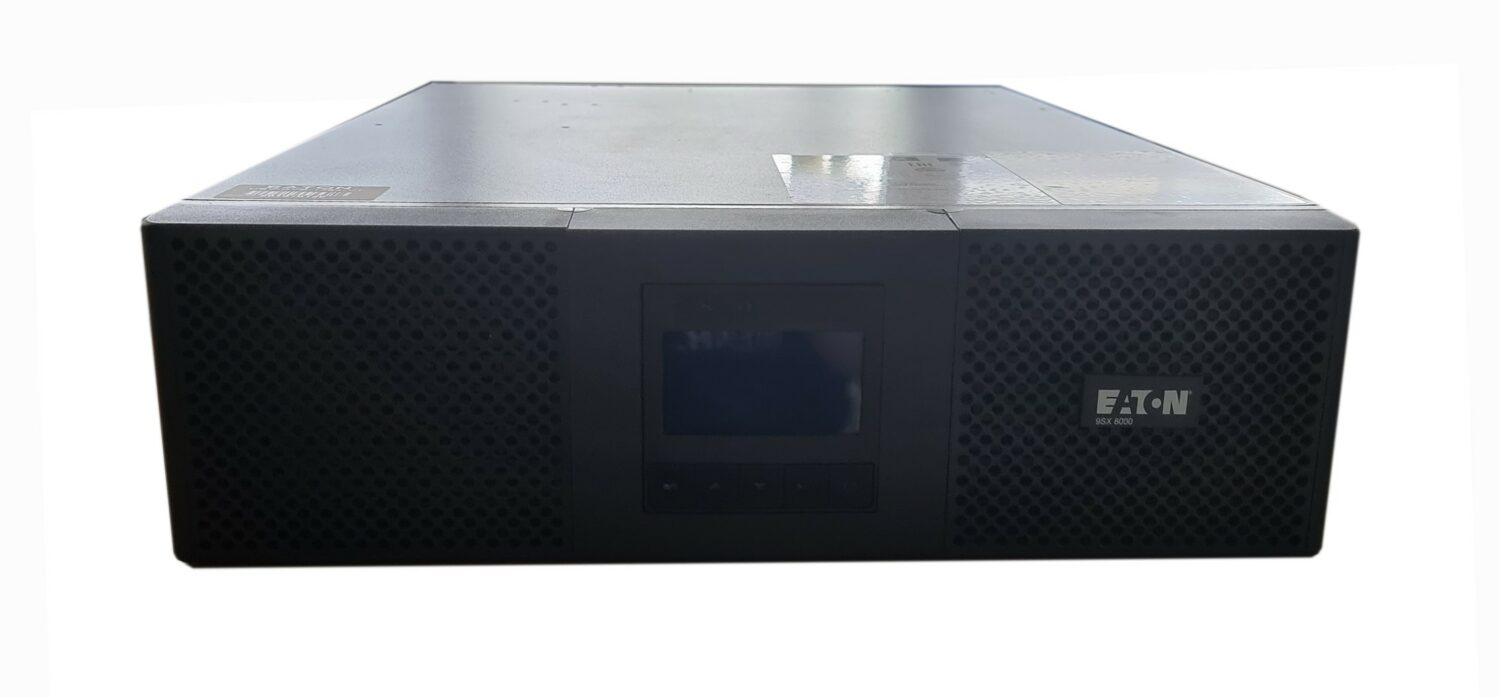

- Model: Eaton 9SX 8000i PM (9SX8KIPM)
- Power Rating: 8000 VA / 7200 W
- Form Factor: Rack-Mountable or Desktop
- Topology: Online Double Conversion
- Input Voltage: 200/208/220/230/240 VAC (Adjustable)
- Output Voltage: 200/208/220/230/240 VAC (Adjustable)
- Output Connections:
- 1 x Hardwired Terminal Block (L-N-E-G)
- 2 x IEC C19
- 2 x IEC C13
- Battery Type: Replaceable, Sealed Lead-Acid
- Battery Runtime: Varies depending on load (e.g., minutes to hours)
- Efficiency: Up to 95% in high-efficiency mode
- Communication Ports:
- USB Port
- RS-232 Serial Port
- SNMP (Optional Network Card)
- Management Software: Eaton Intelligent Power Software Suite
- Display: LCD Screen for Real-Time Status and Configuration
- Rack-Mountable: Yes, with optional rack kit
- Hot-Swappable Batteries: Yes
